Coolant Distribution Unit

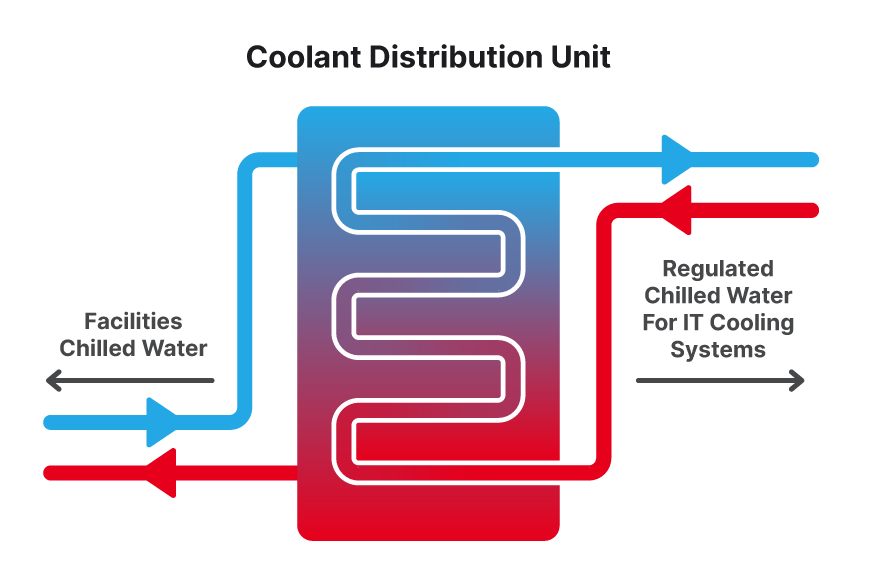

Our CDU decouples facilities chilled water from IT cooling to providea precisely controlled chilled water supply for immersion and direct-to-chip cooling systems.
Cooling intensive HPC and AI workloads
With a 1.5MW (1,500kW) heat capacity, the CDU-M15 efficiently supplies regulated, contaminant-free chilled water to to downstream IT cooling systems.
Whether it’s supporting direct-to-chip (DTC, also known as DLC or direct liquid cooling), immersion cooling, or rear door heat exchangers, the CDU-M15 is ideal for maintaining performance and uptime for high powered CPUs, GPUs, and ASICs.
Features and Benefits
Seamlessly integrates into existing environments
Dynamic heat management to handle load fluctuations
Intuitive touchscreen controls with BMS integration
Optional redundant power feeds
Specifications
External Heat Rejection | Chilled Water or Glycol Mix |
Normal Capacity | 1.5 MW @ 6.5°F ATD |
Secondary Flow (max) | 440 GPM |
Secondary External Pressure Drop (max) | 65 PSI |
Secondary Temperature Range | 45 – 135°F |
Primary Internal Pressure Drop | 13 PSI @ 320 GPM |
Power Consumption (max) | 17.2 kW |
Dimensions | 66” x 79” x 39” |
Dry Weight | 2,700 lb |
