Refrigerant Pumps – Outdoor DX
The RPC pumps refrigerant to the RDHx cooling fans and rejects the extracted heat to an outdoor direct expansion (DX) unit.

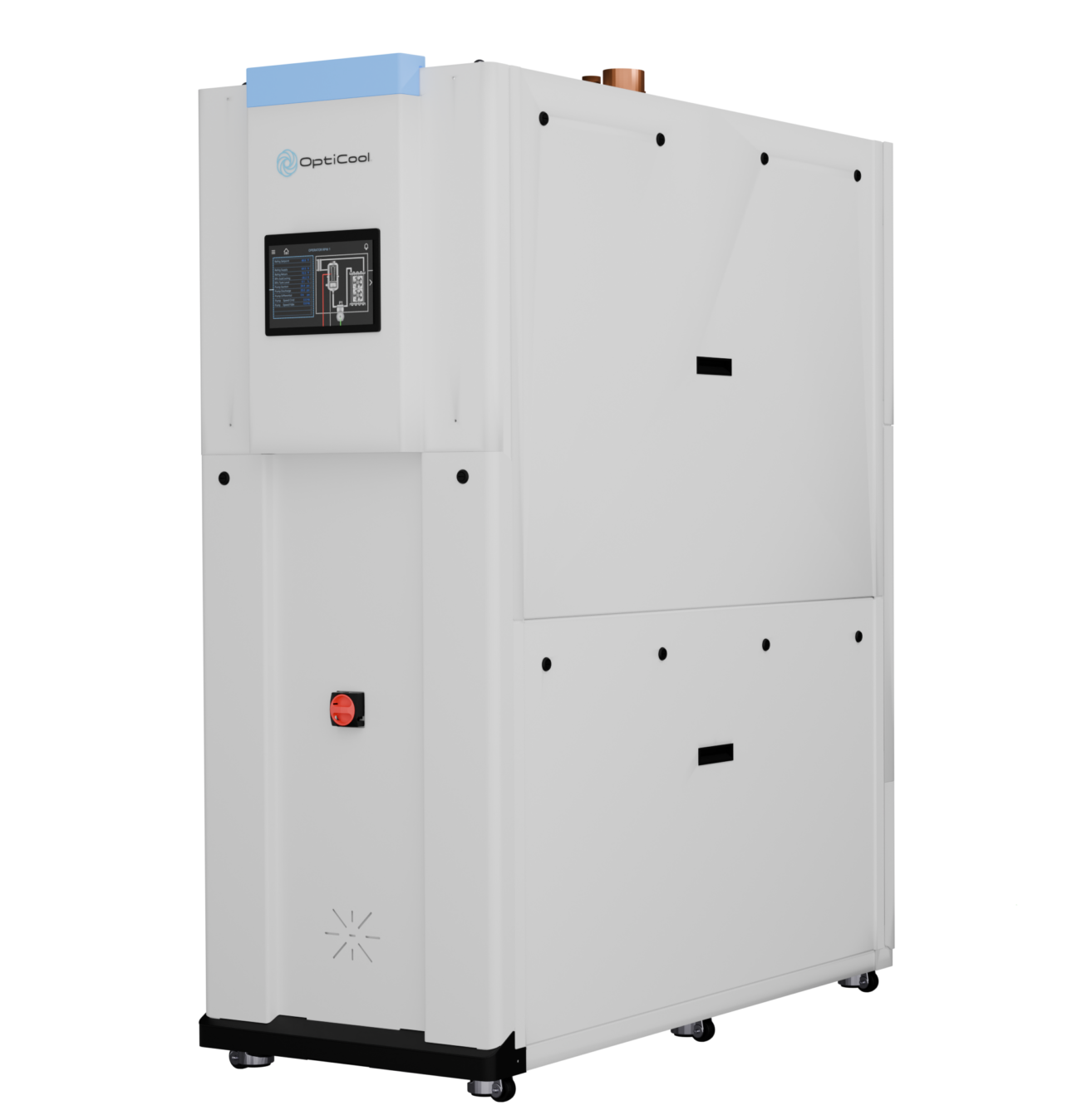

Best-in-class precision cooling
The RPC supplies refrigerant for up to 40 active heat exchange (AHX) units. It is a highly reliable, oil-free, non-toxic, non-conductive, and non-corrosive closed loop system.

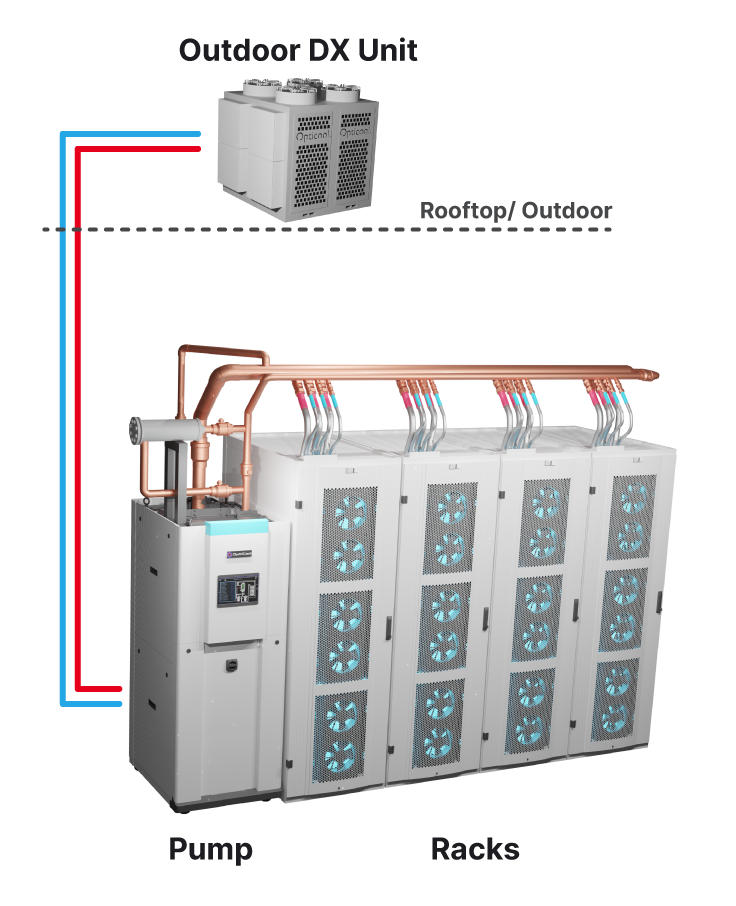

The primary loop is connected to an outdoor direct expansion (ODX) unit for external heat rejection, utilizing R-410A refrigerant.
The secondary loop supplies R-513A. refrigerant to AHX units which are mounted on the racks’ rear doors, or above the racks for aisle containment designs. With a maximum distance of 185 feet between the RPC and the AHX units, the RPC can be placed at the end-of-aisle or in an adjacent room to free up floor space.
Features and Benefits
Two heat capacity models: 115kW and 230kW
Supports up to 40 AHX units
Redundancy options for refrigerant distribution and power
Intuitive touchscreen controls with BMS integration

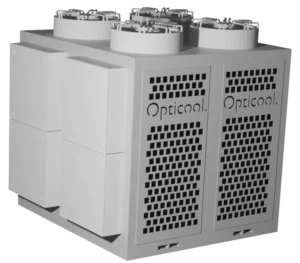

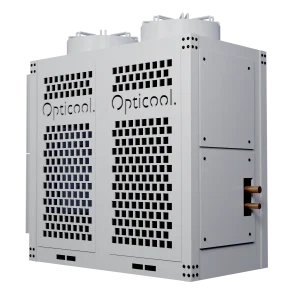

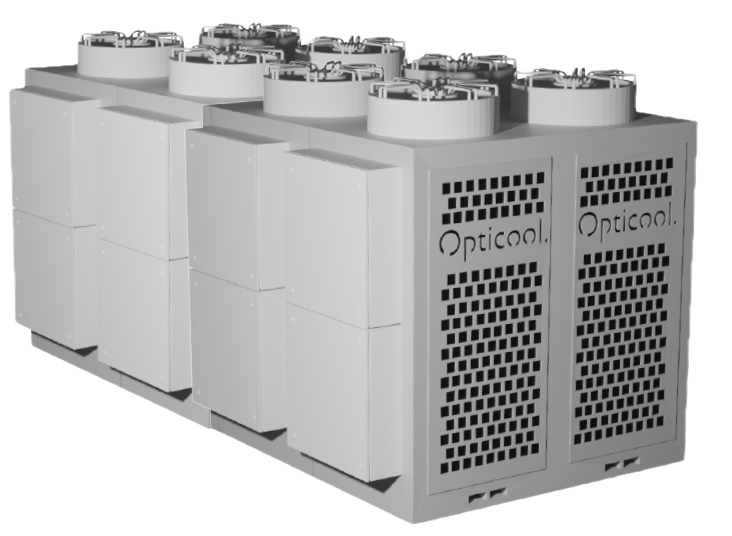

ODX units are paired with the pumps, and feature multiple variable speed compressors for efficiency and optional redundancy
Specifications
 |
|
 |
|

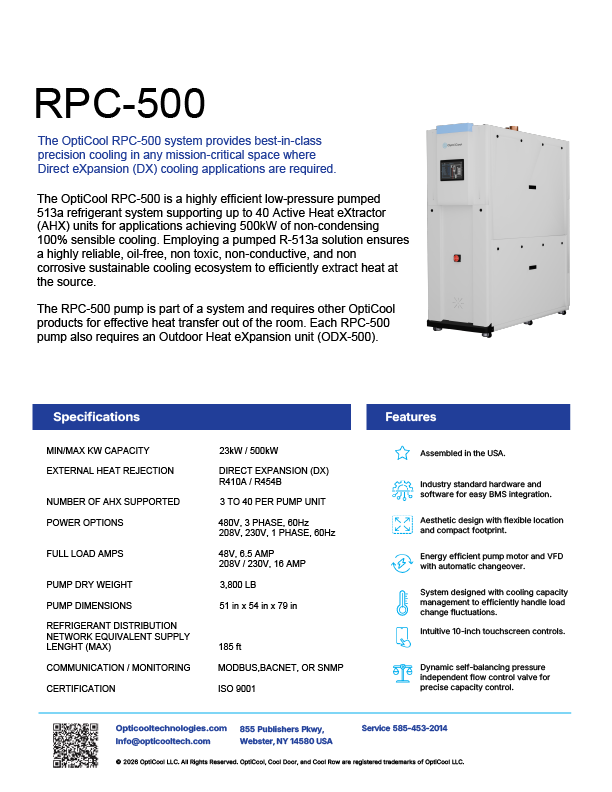

| Refrigerant Pump unit | RPC-115 | RPC-230 | RPC-500 |
| System Heat Capacity | 115kW | 230kW | 500kW |
| Dimensions | 30” x 40” x 82” | 33” x 40” x 82” | 51” x 54” x 79” |
| Weight (dry) | 1,300 lb | 1,500 lb | 3,800 lb |
| ODX model | ODX-115 | ODX-230 | ODX-500 |
| Primary Loop refrigerant | R-410a | ||
| Secondary Loop refrigerant | R-513a | ||
 |
 |
 |
|

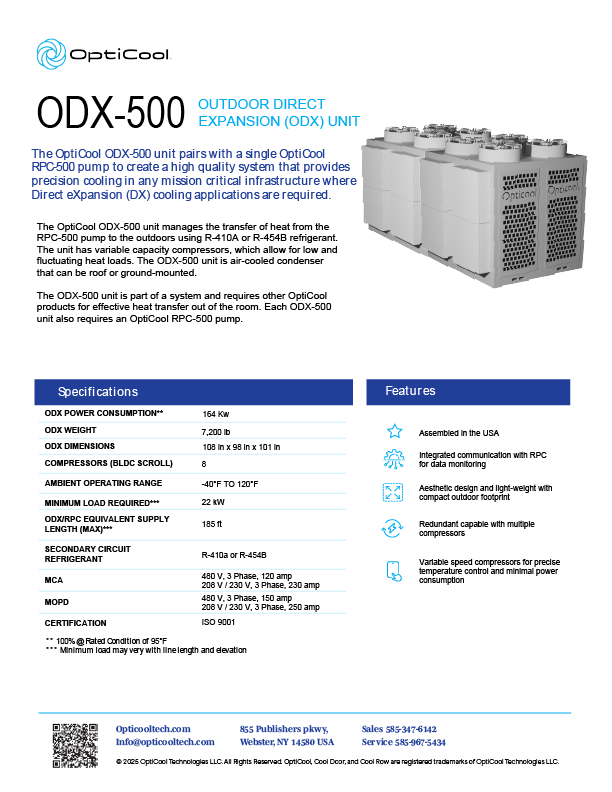

| Outdoor DX unit | ODX-115 | ODX-230 | ODX-500 |
| Dimensions | 45” x 98” x 100” | 90” x 98” x 101” | 108” x 98” x 101” |
| Weight (dry) | 1,800 lb | 3,600 lb | 7,200 lb |
| Power Consumption | 41 kW | 82 kW | 164 kW |
| Operating Range – ambient temperature | -40°F to 120°F | ||
