Refrigerant Pumps – Chilled Water

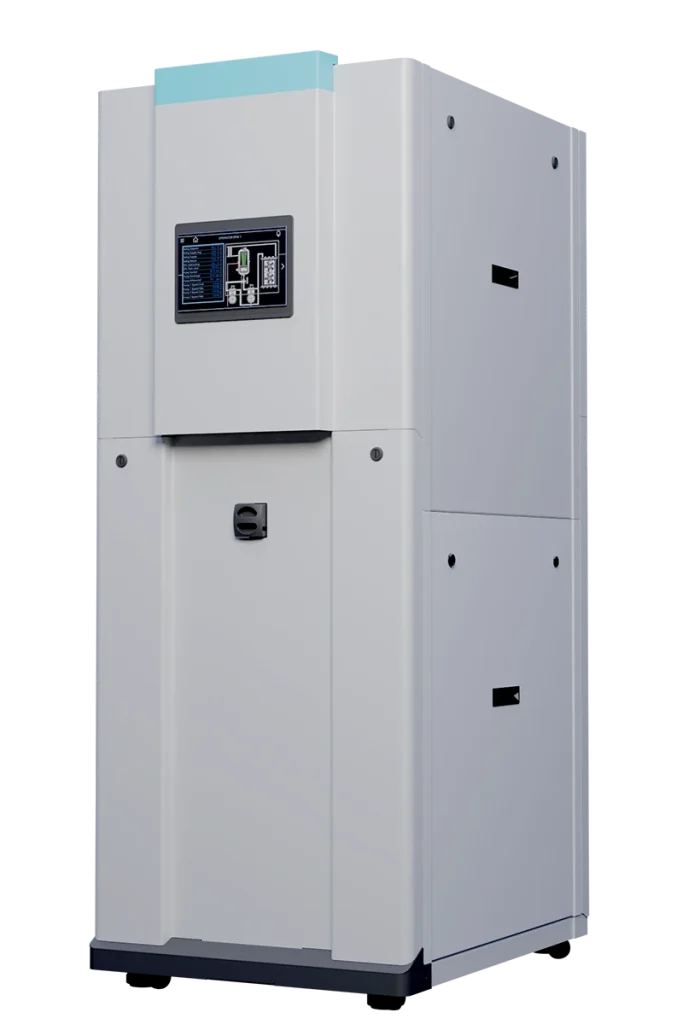

The RPW pumps refrigerant to the RDHx cooling fans and rejects the extracted heat to the facilities chilled water system.
Best-in-class precision cooling
The RPW supplies refrigerant for up to 40 active heat exchange (AHX) units. It is a highly reliable, oil-free, non-toxic, non-conductive, and non-corrosive closed loop system.

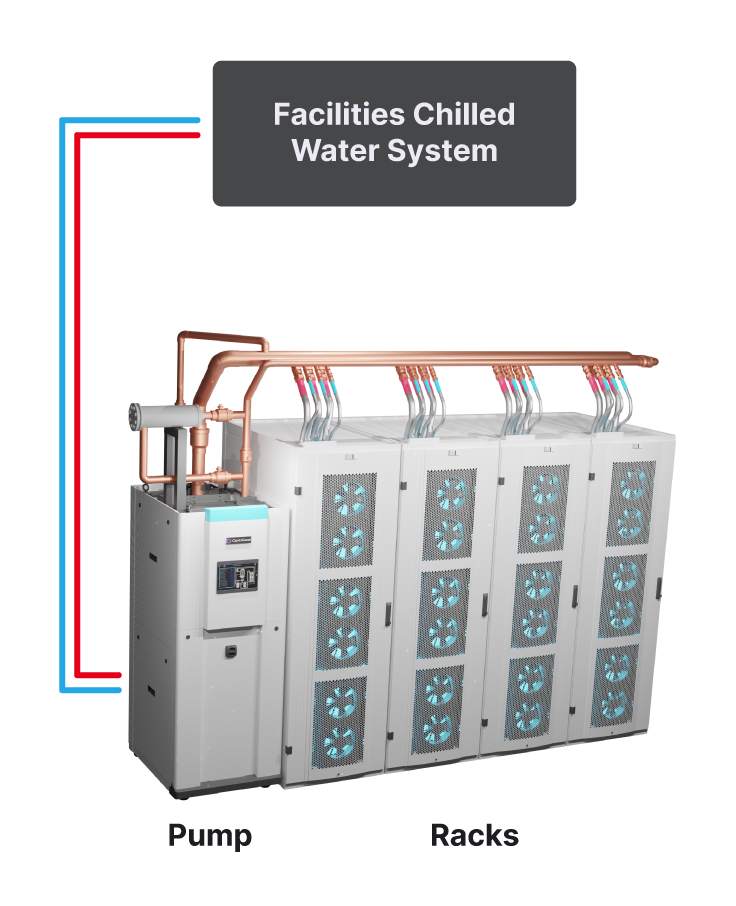

The primary loop is connected to the facilities chilled water supply for external heat rejection.
The secondary loop supplies R-513A. refrigerant to AHX units which are mounted on the racks’ rear doors, or above the racks for aisle containment designs. With a maximum distance of 185 feet between the RPW and the AHX units, the RPW can be located at the end-of-aisle or in an adjacent room to free up floor space
Features and Benefits
Three heat capacity models: 60kW, 120kW, and 230kW
Supports up to 40 AHX units
Redundancy options for refrigerant distribution and power
Intuitive touchscreen controls with BMS integration

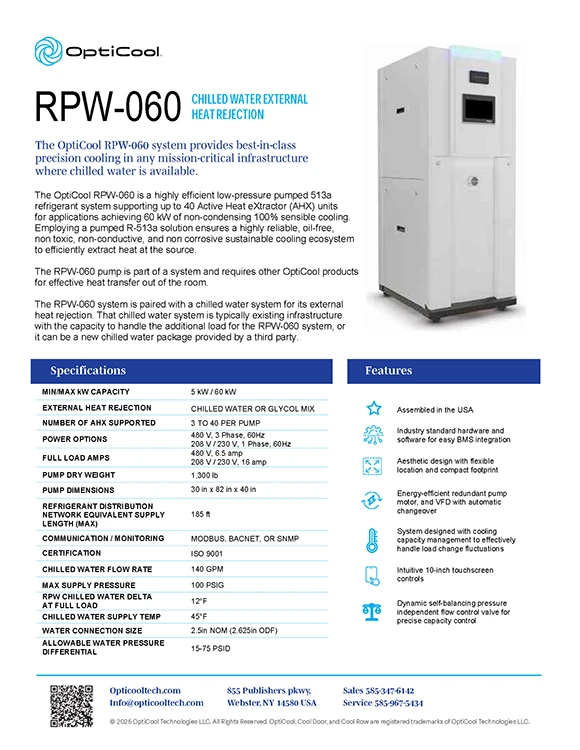

Specifications
|
RPW-60 |
RPW-120 |
RPW-230 |
RPW-500 |
|
|
System Heat Capacity |
60kW |
120kW |
230kW |
500kW |
|
Dimensions |
30″ x 40″ x 82″ |
30″ x 40″ x 82″ |
33″ x 40″ x 82″ |
29″ x 67.5″ x 81.78″ |
|
Weight (dry) |
1,300 lb |
1,300 lb |
1,500 lb |
1,850 lb |
|
Chilled Water Flow Rate |
140 GPM |
220 GPM |
410 GPM |
|
|
Water Connection Size |
2.5″ nominal 2.625″ ODF |
3″ nominal 3.125″ ODF |
5″ nominal 5.6″ OD |
|
|
Allowable Water Pressure Differential |
15-75 PSID |
18-87 PSID |
5.1-116 PSID |
|
|
Max Supply Pressure |
100 PSIG |
150 PSIG |
||
|
RPW Chilled Water ΔT at Full Load |
12° F |
8° F |
||
|
Chilled Water Supply Temperature |
45° F |
|||
