Rear Door Heat Exchangers
Our rear door fans are chilled by refrigerant, extracting up to 120 kW of heat per rack.
Built for Now. Ready for What's Next
Flexibility
Upgrade to high-density cooling as needed on a per rack basis
Reliability (redundancy)
Ideal for Retrofit Applications
Features and Benefits
No impact to the internal space of a rack
Fits any manufacturers rack
Redundant power
Ultra-Low Power Consumption

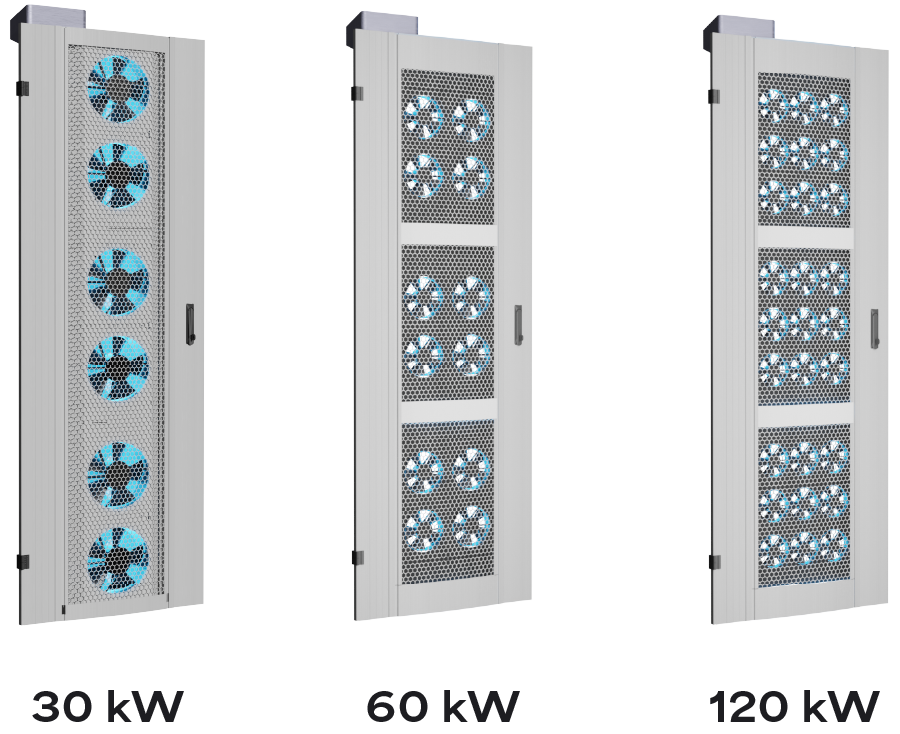

Specifications

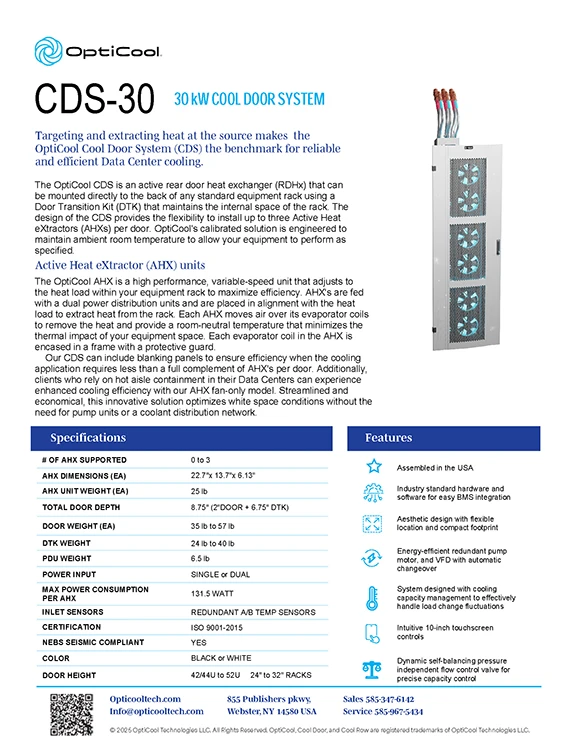

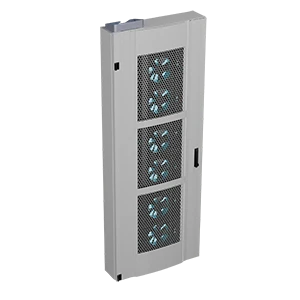

CDS-30 |

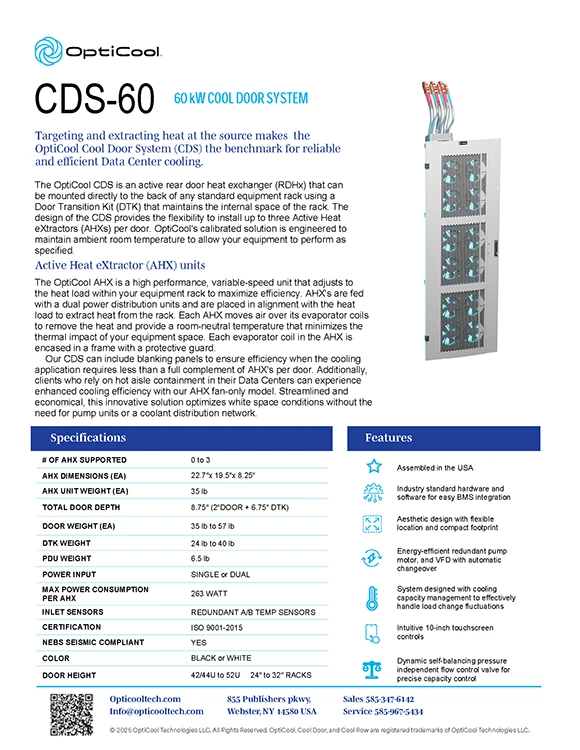

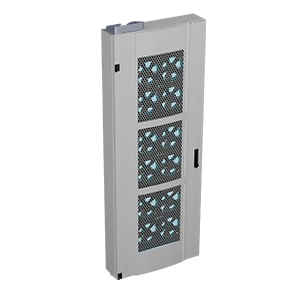

CDS-60 |

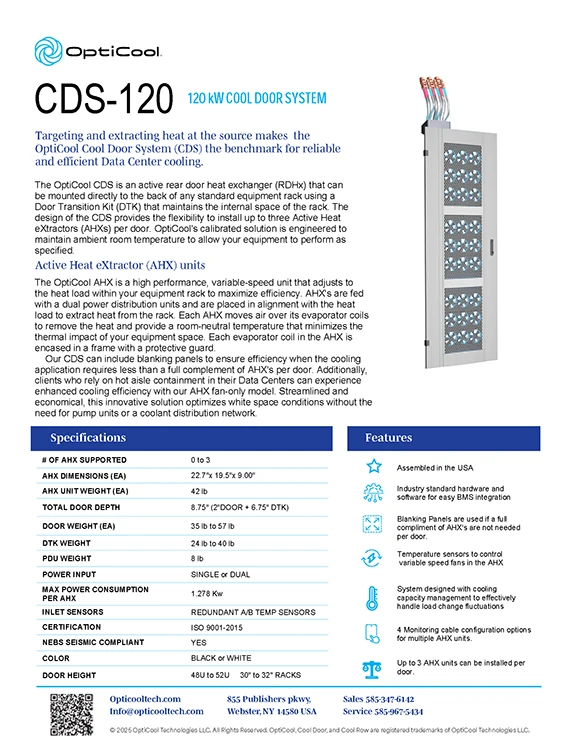

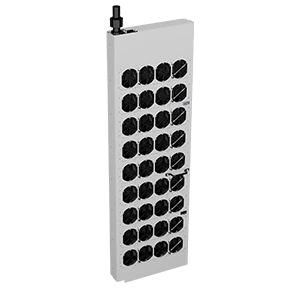

CDS-120 |
|
 |
 |
 |
|
Heat capacity |
30 kW | 60 kW | 120 kW |
Power (max) |
396 W | 790 W | 3,834 W |
Door Height |
42/44U to 52U | ||
Door Depth |
8.75” (2” door + 6.75” door transition kit) | ||
Door Weight |
80 lb | 105 lb | 125 lb |
Inlet Sensors |
Redundant A/B temperature sensors | ||
Color |
Black or White | ||
Compliance |
NEBS SEISMIC | ||
